Diaphragm Sealed
- Sealed Direct Coupled - DCT
- Sealed Heavy Duty Mini Seal - SHD
- Sealed Direct Flange Flush - DFF
- Sealed Direct Flange Insert - DFI
- Sealed "I" Section - DIS
- Sealed Flush Screwed Connection - DFT
- Sealed Triclamp Sanitary - DTS
- Diapghram Seal And Fit Services - DSF

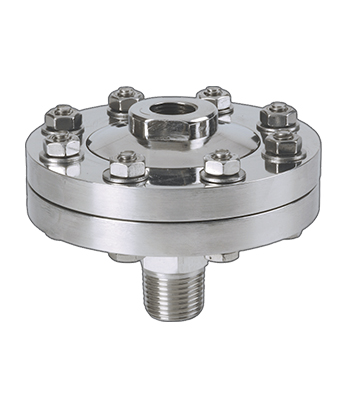

Sealed Direct Coupled - DCT
SPECIFICATIONS :
| Range Type | -1…0 bar,0…70 bar,0… 400 bar |
|---|---|
| Top chamber material | AISI 304 SS |
| Diaphragm | AISI 316L SS |
| Bottom chamber material | AISI 316L SS |
| Instrument connection | 1/2" NPT (F) |
| Sealing fluid | Silicon DC 200 (-40…205°C) |
| Process connection | 1/2" NPT (M) |
| Protection | PTFE Coated (Optional) |
