Stainless Steel Front Openable Pressure Gauge - PGW
SPECIFICATIONS :
| Dial size | 100/ 125/150/ 250 mm |
|---|---|
| Range | -1…0…1,000 bar or other equivalent units of pressure or vacuum |
| Mounting Pattern | Direct Bottom Connection |
| Process Connection | 1/2” NPT/ BSP/ BSPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Bourdon Tube | AISI 316L SS (≤100 bar:C -Type, >100 bar:Helical) |
|---|---|
| Socket | AISI 316L (Socket welded directly to case) |
| Case & Bezel | AISI 304 SS (Bezel Bayonet Type) |
| Movement | AISI 304 SS |
| Dial | Aluminum, black graduation on white background |
| Pointer | aluminum, black powder coated |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Sheet glass / Shatterproof / Safety glass |
PARAMETERS :
| Accuracy | ±1% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Process Temperature | 300ºC max |
| Pressure limits | Steady - Full Scale Value Fluctuating - 0.9 x Full Scale Value Short time 1.3 x Full Scale value |
| Weld Joints | TIG argon arc welding |
- Stainless Steel Front Openable Pressure Gauge - PGW
- S. S. Presuregauge External "Zero" Adjustment - PEZ
- Stainless Steel Solid Front Safety Pressure Gauge - PSFS
- Phenol Case Solid Front Safety Pressure Gauge - PSFP
- Stainless Steel Diaphragm Gauge - PLD
- Stainless Steel Eco Pressure Gauge - PES
- Stainless Steel Case Pressure Gauge - PGB
- Electrical Contact Type Pressure Gauge - PEC
- Standard Pressure Gauge - PGUimages/products/rtd

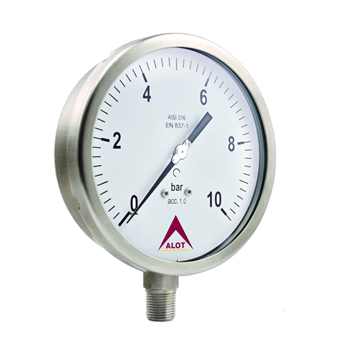

Stainless Steel Front Openable Pressure Gauge - PGW
SPECIFICATIONS :
| Dial size | 100/ 125/150/ 250 mm |
|---|---|
| Range | -1…0…1,000 bar or other equivalent units of pressure or vacuum |
| Mounting Pattern | Direct Bottom Connection |
| Process Connection | 1/2” NPT/ BSP/ BSPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Bourdon Tube | AISI 316L SS (≤100 bar:C -Type, >100 bar:Helical) |
|---|---|
| Socket | AISI 316L (Socket welded directly to case) |
| Case & Bezel | AISI 304 SS (Bezel Bayonet Type) |
| Movement | AISI 304 SS |
| Dial | Aluminum, black graduation on white background |
| Pointer | aluminum, black powder coated |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Sheet glass / Shatterproof / Safety glass |
PARAMETERS :
| Accuracy | ±1% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Process Temperature | 300ºC max |
| Pressure limits | Steady - Full Scale Value Fluctuating - 0.9 x Full Scale Value Short time 1.3 x Full Scale value |
| Weld Joints | TIG argon arc welding |

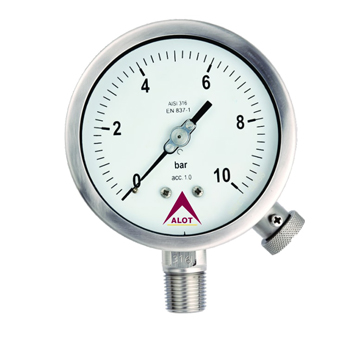

S.S.PRESUREGAUGE EXTERNAL "ZERO"ADJUSTMENT - PEZ
STANDARD SPECIFICATIONS :
| Dial size | 100/150 mm |
|---|---|
| Range | -1…0…1,000 bar or other equivalent units of pressure or vacuum |
| Mounting | Direct, Bottom Connection |
| Process Connection | 1/2” NPT/ BSP/ BSPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
| Zero Adjustment | External screw with locking mechanism |
MATERIAL :
| Bourdon Tube | AISI 316L SS (≤100 bar:C -Type, >100 bar:Helical) |
|---|---|
| Socket | AISI 316L SS (Socket welded to case) |
| Case & Bezel | AISI 304 SS (Bezel Bayonet Lock Type) |
| Movement | AISI 304 SS |
| Dial | Aluminum, black graduation on white background |
| Pointer | Aluminium, black coloured Micrometer Zero Adjustable |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Safety Glass |
PARAMETERS :
| Accuracy | ±1% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Process Temperature | 300ºC max |
| Pressure limits | Steady - Full Scale Value Fluctuating - 0.9 x Full Scale Value Short time 1.3 x Full Scale Value |
| Weld Joints | TIG argon arc welding |

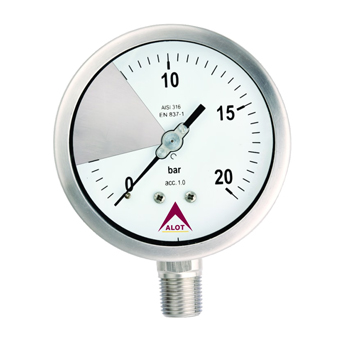

STAINLESS STEEL SOLID FRONT SAFETY PRESSURE GAUGE - PSFS
STANDARD SPECIFICATIONS :
| Dial size | 100/150 mm |
|---|---|
| Range | -1…0…1,000 bar or other equivalent units of pressure or vacuum |
| Mounting | Direct, Bottom Connection |
| Process Connection | 1/2” NPT/ BSP/ BSPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Bourdon Tube | AISI 316L SS (≤100 bar:C -Type, >100 bar:Helical) |
|---|---|
| Socket | AISI 316L SS (Socket welded directly to case) |
| Case & Bezel | AISI 304 SS (Bezel Bayonet Type) |
| Movement | AISI 304 SS |
| Dial | Aluminum, black graduation on white background |
| Pointer | Aluminium, black coloured Micrometer Zero Adjustable |
| Gaskets & filling plug | Neoprene |
| Blow off disc | AISI 304 SS |
| Window | Shatterproof / Safety Glass |
PARAMETERS :
| Accuracy | ±1% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Process Temperature | 300ºC max |
| Pressure limits | Steady - Full Scale Value Fluctuating - 0.9 x Full Scale Value Short time 1.3 x Full Scale Value |
| Weld Joints | TIG argon arc welding |

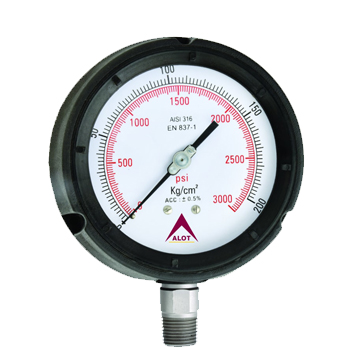

PHENOL CASE SOLID FRONT SAFETY PRESSURE GAUGE - PSFP
STANDARD SPECIFICATIONS :
| Dial size | 115 mm |
|---|---|
| Range | 0…0.6 to 0…1000 bar or other equivalent units of pressure or vacuum |
| Mounting | Direct Bottom Connection |
| Process Connection | 1/2" BSP/ NPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Bourdon Tube | AISI 316L SS (-1 to 60 bar : C –Type) (100 to 1000 bar : Helical Type) |
|---|---|
| Socket | AISI 316L SS |
| Case | Phenolic Resin |
| Ring | Phenolic Resin Screwed |
| Movement | AISI 304 SS |
| Dial | Aluminum with black markings on white background |
| Pointer | Adjustable, black aluminium |
| Gaskets | Neoprene rubber |
| Window | Safety Glass |
PARAMETERS :
| Accuracy | ±0.5/ ±1% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Process Temperature | 120ºC max |
| Pressure limits | Steady - Full Scale Value 30% for Pressure Ranges upto 600kg/cm² 15% for Pressure Ranges above 600kg/ cm² |
| Weld Joints | TIG argon arc welding |

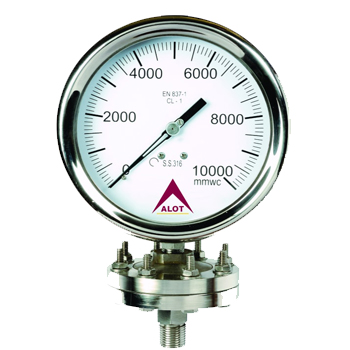

STAINLESS STEEL DIAPHRAGM GAUGE - PLD
STANDARD SPECIFICATIONS :
| Dial size | 100/115 mm |
|---|---|
| Range | HP : -1 TO 0 kg/cm² & 0 to 25 kg/cm² LP : -6000 MMwc to 0 & 0 to 6000 mmWC |
| Mounting | Direct Bottom Connection |
| Process Connection | 1/2" BSP/ NPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Sensing Element | Diaphragm |
|---|---|
| Socket | AISI 316L SS |
| Case & Bezel | AISI 304 SS Bayonet Bezel |
| Movement | AISI 304 SS |
| Dial | Aluminum with black markings on white background |
| Pointer | Micro- adjustable, aluminum |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Safety / Sheet Glass |
PARAMETERS :
| Accuracy | ±1.6% |
|---|---|
| Ambient temperature | -40… +60ºC (without liquid filling) |
| Process Temperature | 100ºC max |
| Pressure limits | Steady pressure upto to F.S. value Fluctuating pressure upto 90% F.S. Value |
| Weld Joints | TIG argon arc welding |

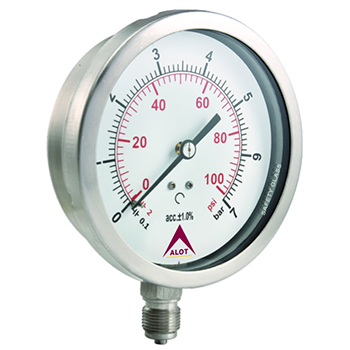

STAINLESS STEEL ECO PRESSURE GAUGE - PES
STANDARD SPECIFICATIONS :
| Dial size | 100 mm |
|---|---|
| Range | -1…0…1,000 bar or other equivalent units of pressure or vacuum |
| Mounting | Direct Bottom Connection |
| Process Connection | 3/8” NPT/ BSP (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Bourdon Tube | AISI 316L SS (≤100 bar:C -Type, >100 bar:Helical) |
|---|---|
| Socket | AISI 316L SS (Socket welded directly to case) |
| Case & Bezel | AISI 304 SS (Bayonet Type) |
| Movement | AISI 304 SS |
| Dial | Aluminum, black graduation on white background |
| Pointer | Fixed, aluminum, black powder coated |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Plexi Glass |
PARAMETERS :
| Accuracy | ±1.6% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Process Temperature | 300ºC max |
| Pressure limits | Steady pressure upto to F.S. value Fluctuating pressure upto 90% F.S. Value Short time 1.3 x FS value for range up to 100 bar Short time 1.15 x FS value for range above 100 bar |
| Weld Joints | TIG argon arc welding |

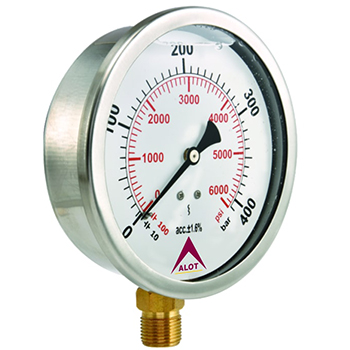

STAINLESS STEEL CASE PRESSURE GAUGE - PGB
STANDARD SPECIFICATIONS :
| Dial size | 50/ 63/ 80/ 100 mm |
|---|---|
| Range | -1…0…1,000 bar or other equivalent units of pressure or vacuum |
| Mounting | Direct Bottom Connection |
| Process Connection | 50/63mm - 1/4” NPT/ BSP / BSPT (M) 80/100mm – 3/8” NPT/ BSP / BSPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry / Dry but fillable, [glycerine 99.7% (Temp. upto 65ºC)] |
MATERIAL :
| Bourdon Tube | Brass (≤100 bar:C -Type, >100 bar:Helical SS) |
|---|---|
| Socket | Brass |
| Case & Bezel | AISI 304 SS (Bezel Rolling Type) |
| Movement | Brass |
| Dial | Aluminum, black graduation on white background |
| Pointer | Plain Pointer, aluminum, black powder coated |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Plexi Glass |
PARAMETERS :
| Accuracy | ±1.6% |
|---|---|
| Ambient temperature | -40… +65ºC (without dampening liquid) -20… +65ºC (with dampening liquid) |
| Pressure limits | Steady - Full Scale Value Fluctuating - 0.9 x Full Scale Value Short time 1.3 x Full Scale Value |
| Joints | Copper Brazing upt 70 kg/cm² Silver Alloy above 70 kg/cm² to 1000 kg/cm² |

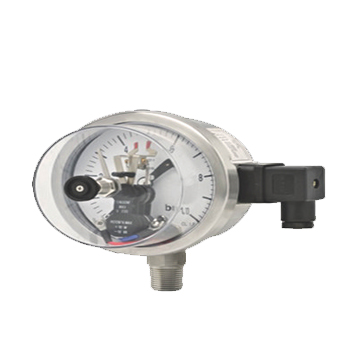

ELECTRICAL CONTACT TYPE PRESSURE GAUGE - PEC
STANDARD SPECIFICATIONS :
| Dial size | 100 / 150 mm |
|---|---|
| Range | 0…0.6 to 0…1600 bar or other equivalent units of pressure or vacuum |
| Mounting | Direct Bottom Connection |
| Process Connection | 1/2" BSP/ NPT (M) |
| Ingress protection | IP 65 |
| Execution | Dry |
MATERIAL :
| Sensing element | AISI 316L SS ( ≤ 70 bar : C -Type, ≥ 70 bar : Helical Type) |
|---|---|
| Socket | AISI 316L SS (Socket weleded directly to case) |
| Case & Bezel | AISI 304 SS Bayonet Ring |
| Movement | AISI 304 SS |
| Dial | Aluminum with black markings on white background |
| Pointer | Micro-zero adjustable, aluminum, black powder coated |
| Gaskets/Blow off disc/filling plug | Neoprene |
| Window | Polycarbonate dome |
| Electrical Contacts | 4 pin PG 13.5 connector Switch 1NO, 1NC, 1NO+1NC, SPDT, DPDT |
PARAMETERS :
| Accuracy | ±1% |
|---|---|
| Ambient temperature | -40… +60ºC (without liquid filling) |
| Pressure limits | Steady pressure upto to F.S. value Fluctuating pressure upto 90% F.S. Value |
| Joints | TIG argon arc welding |

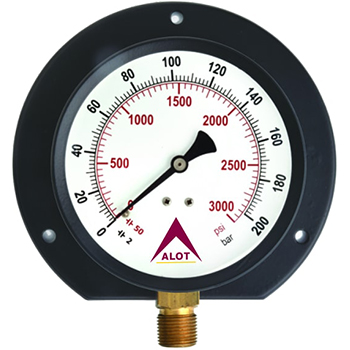

STANDARD PRESSURE GAUGE - PGU
STANDARD SPECIFICATIONS :
| Dial size | 40/ 50/ 63 / 80 / 100 / 150 / 250 mm |
|---|---|
| Range | equivalent units of pressure or vacuum |
| Mounting | Direct Bottom Connection |
| Process Connection | 40/50/63mm - 1/8” BSP/BSPT/NPT (M), 1/4" BSP/BSPT/ NPT (M) 100/150mm – 3/8” BSP/BSPT/NPT 250mm – 1/2" BSP/ NPT |
| Execution | Dry |
MATERIAL :
| Bourdon Tube | Brass ( <100 bar: C – type,>100 bar: Helical) |
|---|---|
| Socket | Brass |
| Case & Bezel | Steel, powder coated painted bezel (Push fit type) |
| Movement | Brass |
| Dial | Aluminum, black graduation on white background |
| Pointer | Fixed, aluminium, black powder coated |
| Window | Sheetm Glass |
PARAMETERS :
| Accuracy | ±1.6/ 2.5% |
|---|---|
| Ambient temperature | -30… +65ºC |
| Pressure Temperature | 150ºC max |
| Pressure Limits | Steady pressure upto to 75% F.S. value Short time 1.3 x FS value for range upto 100 bar Short time 1.15 x FS value for ranges 100 upto 600 bar Short time 1.1 x FS value for ranges above 600 bar |
| Joints | Silver alloy brazing / soldering |
