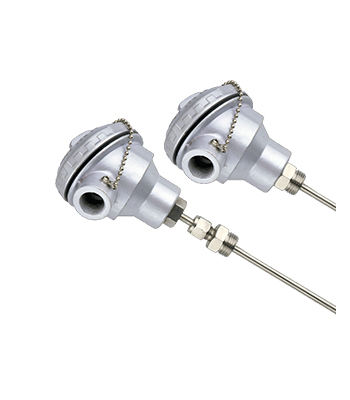

RTD with Fix / Adjustable Connection - R1
SPECIFICATIONS :
| Element | Pt-100, class B |
|---|---|
| Range | -200...400°C |
| Wire combination | Simplex, 3 Wire |
| Sheath material | AISI 316 SS |
| Sheath diameter | 6.0 mm |
| Head enclosure | Weatherproof, IP 65, threaded |
| Enclosure material | Die-cast aluminum |
| Cable entry | 3/4" ET (F), 1 No. |
| Head connection | Fixed / Adjustable thread connection |
| Connection material | AISI 304 SS |
| Immersion length | 300 mm |
| Process connection | 1/2" NPT (M) |

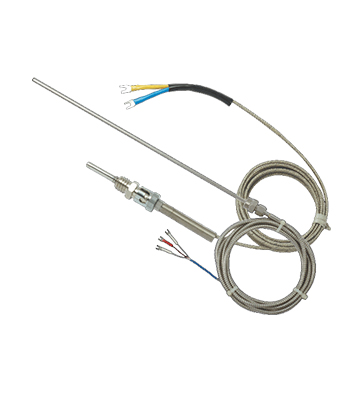

RTD Sensor, Pencil Type with Flexi Cable - R2
SPECIFICATIONS :
| Element | Pt-100, class B |
|---|---|
| Range | -200...400°C |
| Wire combination | Simplex, 3 Wire |
| Sheath material | AISI 316 SS |
| Sheath diameter | 6.0 mm |
| End termination | Crimp-on pot |
| Element length | 300 mm |
| Lead wire length | 3000 mm |
| Lead wire type | PTFE / PTFE / SS Braided Lead wires |
| Process connection | 1/2" NPT (M) Adjustable |

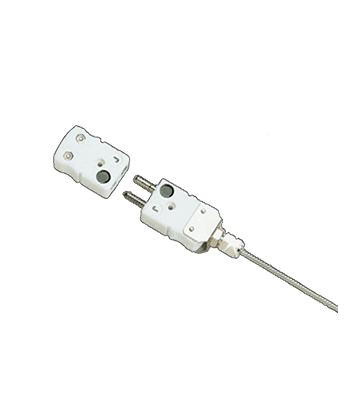

RTD Sensor , With Plug & Jack Type - R3
SPECIFICATIONS :
| Element | Pt-100, class B |
|---|---|
| Range | -200...400°C |
| Wire combination | Simplex, 3 Wire |
| Sheath material | AISI 316 SS |
| Sheath diameter | 6.0 mm |
| End termination | Standard Plug & Jack Connector |
| Element length | 300 mm |
| Process connection | 1/2" NPT (M), Adjustable |

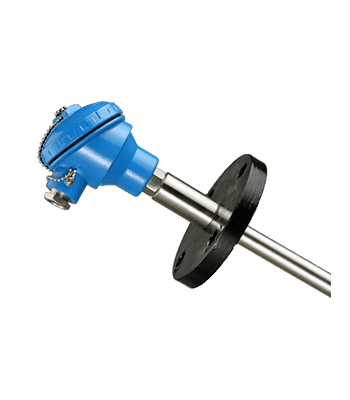

RTD With Flanged Connection - R5
SPECIFICATIONS :
| Element | Pt-100, class B |
|---|---|
| Range | -200...400°C |
| Wire combination | Simplex, 3 Wire |
| Sheath material | AISI 316 SS |
| Head enclosure | Weatherproof, IP 65, threaded |
| Enclosure material | Die-cast aluminum |
| Cable entry | 3/4" ET (F), 1 No. |
| Enclosure extension | Head with female threading |
| Protecting tube material | AISI 316 SS |
| Protecting tube size | 1/2" Sch. 40 |
| Process connection | Adjustable |
| Process connection | 1.5" RF 150# as per ANSI B 16.5 |
| Process connection material | AISI 304 SS |
| Immersion Length | 300 mm |
| Extension Length | 100 mm |

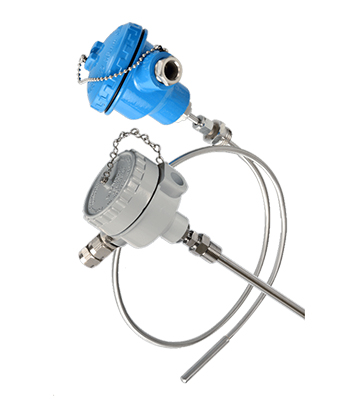

Mineral Insulated RTD - R8
SPECIFICATIONS :
| Element | Pt-100, class (A/B) |
|---|---|
| Range | -200...400°C |
| No. of sensors | Simplex / Duplex |
| Wire combination | 2 Wire, 3 Wire |
| Sheath material | AISI 316 SS |
| Sheath diameter | 3 / 4 / 6 mm |
| Immersion Length | 50 mm upto 10000 mm |
| Enclosure | Weatherproof IP 65 |
| Cable entry | 3/4" ET (F), 1 No. |
| Connection type | 1/2" BSP / NPT Adjustable |

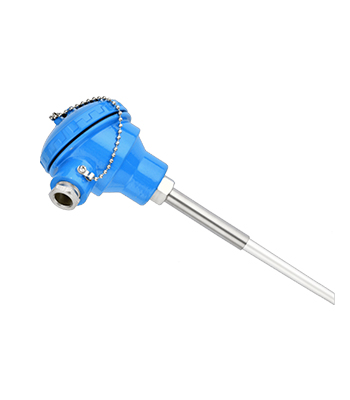

Flame Proof RTD - R9
SPECIFICATIONS :
| Element | Pt-100, class (A/B) |
|---|---|
| Range | -200...400°C |
| No. of sensors | Simplex / Duplex |
| Wire combination | 2 Wire, 3 Wire |
| Sheath material | AISI 316 SS |
| Sheath diameter | 6 / 8 / 10 mm |
| Immersion Length | 300 mm |
| Enclosure | Flameproof for Gas I, II and IIB as per IS 2148 |
| Cable entry | 3/4" ET (F), 1 No. |
| Connection type | 1/2" BSP / NPT Adjustable |
