Thermocouple
- Thermocouple With Fix / Adjustable Connection - TC1
- Thermocouple, Pencil Type With Flexi Cable - TC2
- Thermocouple, With Plug & Jack Type - TC3
- Thermocouple Assembly With Flanged Connection - TC5
- Mineral Insulated Thermocouple - TC6
- Thermocouple With High Temp. Ceramic Tube - TC7

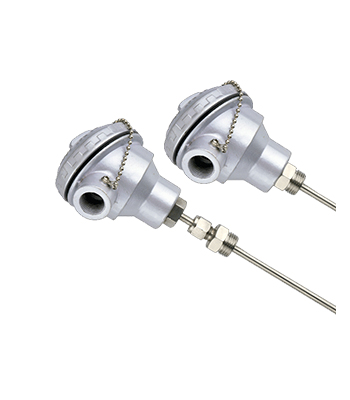

Thermocouple With Fix / Adjustable Connection - TC1
SPECIFICATIONS :
| Element | Type K (NiCr-Ni) |
|---|---|
| Accuracy | Standard to ISA & ANSI MC96.1 |
| No. of element | Simplex / Duplex |
| Hot junction | Ungrounded |
| Sheath material | AISI 316 SS |
| Sheath diameter | 6.0 mm |
| Terminal head | Threaded, weatherproof, IP-65 |
| Terminal head material | Die-cast Aluminum |
| Cable entry | 3/4" ET (F), 1 No. |
| connection | Fixed / Adjustable threaded connection |
| Connection material | AISI 304 SS |
| Immersion length | 300 mm |
| Process connection | Die-cast Aluminum |
Send Enquiry
